Snekmer easy Tutorial
``snekmer easy`` is a streamlined front-end for the Learn/Apply pipeline.
It takes your training sequences, query sequences, and annotation info and handles the rest.
This tutorial uses the demo data included in the Snekmer repository and runs entirely from the command line.
When to use ``easy`` vs. ``snekmer learn`` / ``snekmer apply`` directly:
Situation |
Recommendation |
|---|---|
First time running, want results fast |
|
Existing |
|
Adding new training data to an existing model |
|
Exploring parameters interactively |
|
Setup
Install Snekmer and activate your environment before running this notebook.
See the installation guide for details.
To use Snekmer inside a Jupyter notebook kernel:
source ~/snekmer_env/bin/activate
pip install ipykernel
python -m ipykernel install --user --name=snekmer
jupyter notebook
Note: This notebook assumes you are running it from the
docs/source/tutorial/directory.
[1]:
from pathlib import Path
import pandas as pd
import matplotlib.pyplot as plt
# Paths to demo data (relative to docs/source/tutorial/)
DEMO_ROOT = Path("../../../resources/demo_sequences/learn_apply_inputs")
train_dir = DEMO_ROOT / "learn"
query_file = DEMO_ROOT / "apply" / "test_sequences_1.fasta"
ann_file = DEMO_ROOT / "annotations" / "TIGRFAMs_annotation.ann"
output_dir = Path("easy_output")
results_path = output_dir / "apply" / "snekmer_results.csv"
[2]:
!snekmer --version
1.4.1
What easy needs
easy requires three inputs:
Input |
Flag |
Description |
|---|---|---|
Training sequences |
|
FASTA file or directory of FASTA files with known annotations |
Query sequences |
|
FASTA file or directory of FASTA files to annotate |
Annotations |
|
Path to a |
Annotation file format (.ann)
A tab-separated file with two columns: id and family:
id family
A0A2D0MWR0 TIGR04183
A0A2D0MY79 TIGR04131
A0A1Y4R5C6 TIGR00722
The
id must match the accession in your FASTA headers.For UniProt-style headers (
>db|ACCESSION|name ...), Snekmer extracts the field between the first pair of ``|`` characters.Auto-generating annotations with --create-ann
If your training FASTA headers encode the family label between pipes, you can skip the .ann file:
>db|FAMILY_LABEL|seqid description
Use --create-ann and Snekmer will parse the headers and build the annotation file for you.
Demo data
The demo data is included in the Snekmer repository under resources/demo_sequences/learn_apply_inputs/:
resources/demo_sequences/learn_apply_inputs/
├── learn/ ← 10 training FASTA files (5,000 annotated proteins, 200 TIGRFAM families)
│ ├── training_sequences_1.fasta
│ ├── ...
│ └── training_sequences_10.fasta
├── apply/ ← 1 query FASTA (3,000 proteins: in-family, other families, unannotated)
│ └── test_sequences_1.fasta
└── annotations/
└── TIGRFAMs_annotation.ann ← id/family TSV
[3]:
%%bash
DEMO=../../../resources/demo_sequences/learn_apply_inputs
for f in "$DEMO/learn" \
"$DEMO/apply/test_sequences_1.fasta" \
"$DEMO/annotations/TIGRFAMs_annotation.ann"; do
[ -e "$f" ] && echo "Available: $f" || echo "MISSING: $f"
done
Available: ../../../resources/demo_sequences/learn_apply_inputs/learn
Available: ../../../resources/demo_sequences/learn_apply_inputs/apply/test_sequences_1.fasta
Available: ../../../resources/demo_sequences/learn_apply_inputs/annotations/TIGRFAMs_annotation.ann
Running easy
The command below runs the full pipeline non-interactively. All required inputs are provided as flags, so no prompts will appear.
snekmer easy \
--train <training FASTA or directory> \
--query <query FASTA or directory> \
--ann <path/to/annotations.ann> \
--output <output directory>
All other parameters (k-mer length, alphabet, etc.) have sensible defaults and do not need to be specified for most analyses.
[4]:
%%bash
export MPLBACKEND=agg
# This is the command line call:
snekmer easy \
--train ../../../resources/demo_sequences/learn_apply_inputs/learn \
--query ../../../resources/demo_sequences/learn_apply_inputs/apply/test_sequences_1.fasta \
--ann ../../../resources/demo_sequences/learn_apply_inputs/annotations/TIGRFAMs_annotation.ann \
--output easy_output
Assuming unrestricted shared filesystem usage.
host: WE47199
Building DAG of jobs...
Using shell: /bin/bash
Provided cores: 10
Rules claiming more threads will be scaled down.
Job stats:
job count
------------------------- -------
all 1
copy_results_for_apply 1
eval_apply_reverse_seqs 10
eval_apply_sequences 10
evaluate 1
learn 10
learn_report 1
merge 1
reverse_decoy_evaluations 1
total 36
Select jobs to execute...
Execute 10 jobs...
[Fri May 1 13:29:41 2026]
Job 16: Building kmer-association matrix from output/vector/vector/training_sequences_2.npz. Output written to output/learn/kmer_counts_training_sequences_2.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 20: Building kmer-association matrix from output/vector/vector/training_sequences_9.npz. Output written to output/learn/kmer_counts_training_sequences_9.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 15: Building kmer-association matrix from output/vector/vector/training_sequences_7.npz. Output written to output/learn/kmer_counts_training_sequences_7.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 14: Building kmer-association matrix from output/vector/vector/training_sequences_10.npz. Output written to output/learn/kmer_counts_training_sequences_10.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 19: Building kmer-association matrix from output/vector/vector/training_sequences_8.npz. Output written to output/learn/kmer_counts_training_sequences_8.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 11: Building kmer-association matrix from output/vector/vector/training_sequences_3.npz. Output written to output/learn/kmer_counts_training_sequences_3.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 13: Building kmer-association matrix from output/vector/vector/training_sequences_5.npz. Output written to output/learn/kmer_counts_training_sequences_5.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 18: Building kmer-association matrix from output/vector/vector/training_sequences_4.npz. Output written to output/learn/kmer_counts_training_sequences_4.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 12: Building kmer-association matrix from output/vector/vector/training_sequences_1.npz. Output written to output/learn/kmer_counts_training_sequences_1.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:41 2026]
Job 17: Building kmer-association matrix from output/vector/vector/training_sequences_6.npz. Output written to output/learn/kmer_counts_training_sequences_6.csv.
Reason: Code has changed since last execution
[Fri May 1 13:29:50 2026]
Finished jobid: 20 (Rule: learn)
1 of 36 steps (3%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 14 (Rule: learn)
2 of 36 steps (6%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 11 (Rule: learn)
3 of 36 steps (8%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 15 (Rule: learn)
4 of 36 steps (11%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 18 (Rule: learn)
5 of 36 steps (14%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 16 (Rule: learn)
6 of 36 steps (17%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 19 (Rule: learn)
7 of 36 steps (19%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 17 (Rule: learn)
8 of 36 steps (22%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 12 (Rule: learn)
9 of 36 steps (25%) done
[Fri May 1 13:29:50 2026]
Finished jobid: 13 (Rule: learn)
10 of 36 steps (28%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:29:50 2026]
Job 21: Merging individual k-mer association matrix files into consolidated output/learn/kmer_counts_total.csv.
Reason: Input files updated by another job: output/learn/kmer_counts_training_sequences_7.csv, output/learn/kmer_counts_training_sequences_2.csv, output/learn/kmer_counts_training_sequences_5.csv, output/learn/kmer_counts_training_sequences_4.csv, output/learn/kmer_counts_training_sequences_3.csv, output/learn/kmer_counts_training_sequences_8.csv, output/learn/kmer_counts_training_sequences_10.csv, output/learn/kmer_counts_training_sequences_1.csv, output/learn/kmer_counts_training_sequences_6.csv, output/learn/kmer_counts_training_sequences_9.csv
Dataframes merged: 1 out of 10
Dataframes merged: 2 out of 10
Dataframes merged: 3 out of 10
Dataframes merged: 4 out of 10
Dataframes merged: 5 out of 10
Dataframes merged: 6 out of 10
Dataframes merged: 7 out of 10
Dataframes merged: 8 out of 10
Dataframes merged: 9 out of 10
Dataframes merged: 10 out of 10
Checking for base file to merge with.
No file type detected. Please use a .csv file in input/base directory.
Database Merged. Not merged with base file.
[Fri May 1 13:29:57 2026]
Finished jobid: 21 (Rule: merge)
11 of 36 steps (31%) done
Select jobs to execute...
Execute 20 jobs...
[Fri May 1 13:29:57 2026]
Job 38: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_6.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_6.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 41: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_9.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_9.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 30: Using Apply to test normal sequences in output/vector/vector/training_sequences_8.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_8.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 24: Using Apply to test normal sequences in output/vector/vector/training_sequences_5.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_5.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 27: Using Apply to test normal sequences in output/vector/vector/training_sequences_2.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_2.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 33: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_1.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_1.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 36: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_7.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_7.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 39: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_4.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_4.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 32: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_3.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_3.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 25: Using Apply to test normal sequences in output/vector/vector/training_sequences_10.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_10.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 31: Using Apply to test normal sequences in output/vector/vector/training_sequences_9.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_9.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 22: Using Apply to test normal sequences in output/vector/vector/training_sequences_3.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_3.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 28: Using Apply to test normal sequences in output/vector/vector/training_sequences_6.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_6.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 34: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_5.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_5.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 37: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_2.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_2.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 40: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_8.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_8.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 23: Using Apply to test normal sequences in output/vector/vector/training_sequences_1.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_1.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 29: Using Apply to test normal sequences in output/vector/vector/training_sequences_4.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_4.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 35: Using Apply to test reversed (decoy) sequences in output/vector/vector/training_sequences_10.npz. Output written to output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_10.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:29:57 2026]
Job 26: Using Apply to test normal sequences in output/vector/vector/training_sequences_7.npz. Output written to output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_7.csv.gz.
Reason: Input files updated by another job: output/learn/kmer_counts_total.csv
[Fri May 1 13:30:07 2026]
Finished jobid: 24 (Rule: eval_apply_sequences)
12 of 36 steps (33%) done
[Fri May 1 13:30:07 2026]
Finished jobid: 31 (Rule: eval_apply_sequences)
13 of 36 steps (36%) done
[Fri May 1 13:30:07 2026]
Finished jobid: 27 (Rule: eval_apply_sequences)
14 of 36 steps (39%) done
[Fri May 1 13:30:07 2026]
Finished jobid: 25 (Rule: eval_apply_sequences)
15 of 36 steps (42%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 30 (Rule: eval_apply_sequences)
16 of 36 steps (44%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 22 (Rule: eval_apply_sequences)
17 of 36 steps (47%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 28 (Rule: eval_apply_sequences)
18 of 36 steps (50%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 37 (Rule: eval_apply_reverse_seqs)
19 of 36 steps (53%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 34 (Rule: eval_apply_reverse_seqs)
20 of 36 steps (56%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 39 (Rule: eval_apply_reverse_seqs)
21 of 36 steps (58%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 36 (Rule: eval_apply_reverse_seqs)
22 of 36 steps (61%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 38 (Rule: eval_apply_reverse_seqs)
23 of 36 steps (64%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 32 (Rule: eval_apply_reverse_seqs)
24 of 36 steps (67%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 41 (Rule: eval_apply_reverse_seqs)
25 of 36 steps (69%) done
[Fri May 1 13:30:08 2026]
Finished jobid: 33 (Rule: eval_apply_reverse_seqs)
26 of 36 steps (72%) done
[Fri May 1 13:30:14 2026]
Finished jobid: 23 (Rule: eval_apply_sequences)
27 of 36 steps (75%) done
[Fri May 1 13:30:14 2026]
Finished jobid: 29 (Rule: eval_apply_sequences)
28 of 36 steps (78%) done
[Fri May 1 13:30:14 2026]
Finished jobid: 26 (Rule: eval_apply_sequences)
29 of 36 steps (81%) done
[Fri May 1 13:30:15 2026]
Finished jobid: 35 (Rule: eval_apply_reverse_seqs)
30 of 36 steps (83%) done
[Fri May 1 13:30:15 2026]
Finished jobid: 40 (Rule: eval_apply_reverse_seqs)
31 of 36 steps (86%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:30:15 2026]
Job 42: Evaluating reverse decoy sequences and writing family stats to output/eval_conf/family_summary_stats.csv.
Reason: Input files updated by another job: output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_3.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_7.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_5.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_9.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_6.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_1.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_10.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_2.csv.gz
[Fri May 1 13:30:20 2026]
Finished jobid: 42 (Rule: reverse_decoy_evaluations)
32 of 36 steps (89%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:30:20 2026]
Job 43: Calculating global confidence scores based on Apply results. Output written to output/eval_conf/global_confidence_scores.csv.
Reason: Input files updated by another job: output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_5.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_10.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_2.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_7.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_6.csv.gz, output/eval_conf/family_summary_stats.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_3.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_9.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_1.csv.gz
Base confidence file not found or multiple files present. Only one file is allowed in baseConfidence.
[Fri May 1 13:30:25 2026]
Finished jobid: 43 (Rule: evaluate)
33 of 36 steps (92%) done
Select jobs to execute...
Execute 2 jobs...
[Fri May 1 13:30:25 2026]
Job 45: Generating full Snekmer Learn Report at output/Snekmer_Learn_Report.html
Reason: Input files updated by another job: output/learn/kmer_counts_training_sequences_7.csv, output/learn/kmer_counts_training_sequences_2.csv, output/learn/kmer_counts_training_sequences_5.csv, output/learn/kmer_counts_training_sequences_4.csv, output/learn/kmer_counts_training_sequences_3.csv, output/eval_conf/global_confidence_scores.csv, output/learn/kmer_counts_training_sequences_8.csv, output/learn/kmer_counts_training_sequences_10.csv, output/eval_conf/family_summary_stats.csv, output/learn/kmer_counts_training_sequences_1.csv, output/learn/kmer_counts_training_sequences_6.csv, output/eval_conf/family_stats_checkpoint.csv, output/learn/kmer_counts_total.csv, output/learn/kmer_counts_training_sequences_9.csv
[Fri May 1 13:30:25 2026]
Job 44: Copying files needed for downstream apply workflow to local apply_inputs directory.
Reason: Input files updated by another job: output/eval_conf/global_confidence_scores.csv, output/learn/kmer_counts_total.csv, output/eval_conf/family_summary_stats.csv
[Fri May 1 13:30:29 2026]
Finished jobid: 45 (Rule: learn_report)
34 of 36 steps (94%) done
[Fri May 1 13:30:31 2026]
Finished jobid: 44 (Rule: copy_results_for_apply)
35 of 36 steps (97%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:30:31 2026]
localrule all:
input: output/vector/vector/training_sequences_3.npz, output/vector/vector/training_sequences_1.npz, output/vector/vector/training_sequences_5.npz, output/vector/vector/training_sequences_10.npz, output/vector/vector/training_sequences_7.npz, output/vector/vector/training_sequences_2.npz, output/vector/vector/training_sequences_6.npz, output/vector/vector/training_sequences_4.npz, output/vector/vector/training_sequences_8.npz, output/vector/vector/training_sequences_9.npz, output/learn/kmer_counts_training_sequences_3.csv, output/learn/kmer_counts_training_sequences_1.csv, output/learn/kmer_counts_training_sequences_5.csv, output/learn/kmer_counts_training_sequences_10.csv, output/learn/kmer_counts_training_sequences_7.csv, output/learn/kmer_counts_training_sequences_2.csv, output/learn/kmer_counts_training_sequences_6.csv, output/learn/kmer_counts_training_sequences_4.csv, output/learn/kmer_counts_training_sequences_8.csv, output/learn/kmer_counts_training_sequences_9.csv, output/learn/kmer_counts_total.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_3.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_1.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_5.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_10.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_7.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_2.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_6.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_9.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_3.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_1.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_5.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_10.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_7.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_2.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_6.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_9.csv.gz, output/eval_conf/family_summary_stats.csv, output/eval_conf/global_confidence_scores.csv, apply_inputs/counts/kmer_counts_total.csv, apply_inputs/stats/family_summary_stats.csv, apply_inputs/confidence/global_confidence_scores.csv, output/Snekmer_Learn_Report.html
jobid: 0
reason: Input files updated by another job: output/learn/kmer_counts_training_sequences_7.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_2.csv.gz, apply_inputs/confidence/global_confidence_scores.csv, output/learn/kmer_counts_training_sequences_3.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_7.csv.gz, output/Snekmer_Learn_Report.html, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_6.csv.gz, output/learn/kmer_counts_training_sequences_8.csv, output/learn/kmer_counts_training_sequences_10.csv, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_9.csv.gz, apply_inputs/counts/kmer_counts_total.csv, output/learn/kmer_counts_training_sequences_1.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_3.csv.gz, output/eval_conf/global_confidence_scores.csv, output/learn/kmer_counts_training_sequences_6.csv, output/eval_conf/family_summary_stats.csv, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_8.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_1.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_10.csv.gz, output/learn/kmer_counts_training_sequences_9.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_5.csv.gz, output/learn/kmer_counts_training_sequences_2.csv, output/learn/kmer_counts_training_sequences_5.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_10.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_3.csv.gz, output/learn/kmer_counts_training_sequences_4.csv, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_5.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_7.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_6.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_4.csv.gz, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_9.csv.gz, output/evaluate/eval_apply_reversed/seq_annotation_scores_training_sequences_2.csv.gz, apply_inputs/stats/family_summary_stats.csv, output/evaluate/eval_apply_sequences/seq_annotation_scores_training_sequences_1.csv.gz, output/learn/kmer_counts_total.csv
resources: tmpdir=/var/folders/wt/_yr7rg_13t76sq_q5cw57hxw0000gn/T
[Fri May 1 13:30:31 2026]
Finished jobid: 0 (Rule: all)
36 of 36 steps (100%) done
Complete log(s): /Users/jaco059/OneDrive - PNNL/Desktop/Snekmer_New_laptop_rename/PRE_PAPER_PRS/Snekmer/docs/source/tutorial/easy_learn_apply_output/learn/.snakemake/log/2026-05-01T132936.958491.snakemake.log
Assuming unrestricted shared filesystem usage.
host: WE47199
Building DAG of jobs...
Using shell: /bin/bash
Provided cores: 10
Rules claiming more threads will be scaled down.
Job stats:
job count
------------------- -------
all 1
apply 1
apply_report 1
concat_kmer_summary 1
vectorize 1
total 5
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:30:36 2026]
Job 3: Kmerizing and re-encoding Amino acids in input/test_sequences_1.fasta. Output written to output/vector/test_sequences_1.npz.
Reason: Updated input files: input/test_sequences_1.fasta
[Fri May 1 13:30:49 2026]
Finished jobid: 3 (Rule: vectorize)
1 of 5 steps (20%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:30:49 2026]
Job 2: Running Snekmer Apply on output/vector/test_sequences_1.npz. Output written to output/apply/kmer_summary_test_sequences_1.csv.
Reason: Input files updated by another job: output/vector/test_sequences_1.npz
[Fri May 1 13:31:00 2026]
Finished jobid: 2 (Rule: apply)
2 of 5 steps (40%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:31:00 2026]
Job 1: Writing consolidated k-mer summary to snekmer_results.csv
Reason: Input files updated by another job: output/apply/kmer_summary_test_sequences_1.csv
[Fri May 1 13:31:00 2026]
Finished jobid: 1 (Rule: concat_kmer_summary)
3 of 5 steps (60%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:31:00 2026]
Job 4: Generating full Snekmer Apply Report at output/Snekmer_Apply_Report.html
Reason: Input files updated by another job: output/apply/kmer_summary_test_sequences_1.csv, snekmer_results.csv
[Fri May 1 13:31:06 2026]
Finished jobid: 4 (Rule: apply_report)
4 of 5 steps (80%) done
Select jobs to execute...
Execute 1 jobs...
[Fri May 1 13:31:06 2026]
localrule all:
input: snekmer_results.csv, output/apply/kmer_summary_test_sequences_1.csv, output/Snekmer_Apply_Report.html
jobid: 0
reason: Input files updated by another job: output/Snekmer_Apply_Report.html, output/apply/kmer_summary_test_sequences_1.csv, snekmer_results.csv
resources: tmpdir=/var/folders/wt/_yr7rg_13t76sq_q5cw57hxw0000gn/T
[Fri May 1 13:31:06 2026]
Finished jobid: 0 (Rule: all)
5 of 5 steps (100%) done
Complete log(s): /Users/jaco059/OneDrive - PNNL/Desktop/Snekmer_New_laptop_rename/PRE_PAPER_PRS/Snekmer/docs/source/tutorial/easy_learn_apply_output/apply/.snakemake/log/2026-05-01T133033.584336.snakemake.log
--- Running snekmer learn ---
Copying learn outputs to apply input directories...
--- Running snekmer apply ---
=== Complete ===
Results: /Users/jaco059/OneDrive - PNNL/Desktop/Snekmer_New_laptop_rename/PRE_PAPER_PRS/Snekmer/docs/source/tutorial/easy_learn_apply_output/apply/snekmer_results.csv
Output structure
After running, the output directory contains two sub-workspaces:
easy_output/
├── learn/ ← Learn pipeline workspace
│ ├── input/ ← symlinks to training FASTA files
│ ├── annotations/ ← your .ann file
│ ├── config.yaml ← generated config
│ ├── apply_inputs/ ← handoff files for apply
│ │ ├── counts/kmer_counts_total.csv
│ │ ├── stats/family_summary_stats.csv
│ │ └── confidence/global_confidence_scores.csv
│ └── output/
│ ├── learn/ ← per-file and total kmer count matrices
│ └── eval_conf/ ← confidence scores and family stats
│
└── apply/ ← Apply pipeline workspace
├── input/ ← symlinks to query FASTA files
├── counts/ ← kmer_counts_total.csv (copied from learn)
├── confidence/ ← global_confidence_scores.csv (copied from learn)
├── stats/ ← family_summary_stats.csv (copied from learn)
├── config.yaml ← generated config
├── snekmer_results.csv ← main results file
└── output/
└── apply/ ← per-file kmer_summary CSVs
The main results file is apply/snekmer_results.csv.
Reading the results
The results file contains one row per query sequence with five columns:
Column |
Description |
|---|---|
|
Sequence identifier from the FASTA header |
|
Predicted family (highest cosine similarity) |
|
Cosine similarity between the sequence and the predicted family |
|
Gap between top and second-best similarity scores |
|
Calibrated probability the prediction is correct (0–1) |
[5]:
df = pd.read_csv(results_path)
print(f"Total sequences: {len(df)}")
df.head(10)
Total sequences: 3000
[5]:
| Sequence | Prediction | Score | delta | Confidence | |
|---|---|---|---|---|---|
| 0 | tr|A0A2S8EUS7|A0A2S8EUS7_9RHOB | TIGR01783 | 0.199116 | 0.00 | 0.383333 |
| 1 | tr|A0A401ZGP4|A0A401ZGP4_9CHLR | TIGR00757 | 0.315537 | 0.02 | 0.921569 |
| 2 | tr|A0A427BXE3|A0A427BXE3_9GAMM | TIGR01023 | 0.198284 | 0.08 | 1.000000 |
| 3 | tr|J2LWC9|J2LWC9_9BURK | TIGR00797 | 0.210697 | 0.00 | 0.383333 |
| 4 | tr|A0A2Z5TEJ7|A0A2Z5TEJ7_9GAMM | TIGR00229 | 0.225655 | 0.00 | 0.383333 |
| 5 | tr|A0A6G7WF57|A0A6G7WF57_9LACT | TIGR03534 | 0.297106 | 0.08 | 1.000000 |
| 6 | tr|A0A1I1XLP5|A0A1I1XLP5_9FIRM | TIGR00229 | 0.265441 | 0.02 | 0.921569 |
| 7 | tr|A0A0K8J9U8|A0A0K8J9U8_9FIRM | TIGR00231 | 0.225392 | 0.01 | 0.654545 |
| 8 | tr|A0A0D8ZMS0|A0A0D8ZMS0_9CYAN | TIGR00496 | 0.169543 | 0.01 | 0.654545 |
| 9 | tr|R7F3B1|R7F3B1_9BACT | TIGR01733 | 0.229176 | 0.00 | 0.383333 |
Filtering by confidence
A Confidence ≥ 0.95 threshold is a reasonable starting point for high-reliability annotations.
For exploratory work you may lower this; for publication-quality calls you may want to raise it.
Note: All sequences receive a prediction. Sequences with
Score = 0.0have no overlapping k-mers with any training family; these predictions are not meaningful and should be excluded.
[6]:
CONF_THRESHOLD = 0.95
high_conf = df[(df["Confidence"] >= CONF_THRESHOLD) & (df["Score"] > 0)].copy()
print(f"High-confidence predictions (\u2265{CONF_THRESHOLD}): {len(high_conf)} / {len(df)}")
high_conf.head(10)
High-confidence predictions (≥0.95): 995 / 3000
[6]:
| Sequence | Prediction | Score | delta | Confidence | |
|---|---|---|---|---|---|
| 2 | tr|A0A427BXE3|A0A427BXE3_9GAMM | TIGR01023 | 0.198284 | 0.08 | 1.000000 |
| 5 | tr|A0A6G7WF57|A0A6G7WF57_9LACT | TIGR03534 | 0.297106 | 0.08 | 1.000000 |
| 10 | tr|C5RAN2|C5RAN2_WEIPA | TIGR01017 | 0.290899 | 0.11 | 1.000000 |
| 11 | tr|A0A2P1NPL9|A0A2P1NPL9_9BURK | TIGR00593 | 0.477110 | 0.14 | 1.000000 |
| 14 | tr|A0A1Y0FXC9|A0A1Y0FXC9_9GAMM | TIGR00350 | 0.166781 | 0.03 | 0.956522 |
| 15 | tr|A0A6P1ZCD6|A0A6P1ZCD6_9DELT | TIGR02937 | 0.207365 | 0.03 | 0.956522 |
| 17 | tr|A0A3A9ZRN3|A0A3A9ZRN3_9ACTN | TIGR00594 | 0.405080 | 0.06 | 0.990991 |
| 20 | tr|A8FCF0|A8FCF0_BACP2 | TIGR00254 | 0.366038 | 0.05 | 1.000000 |
| 22 | tr|A0A0N0KF67|A0A0N0KF67_9SPHN | TIGR00674 | 0.351895 | 0.15 | 1.000000 |
| 29 | tr|A0A2S1LEL5|A0A2S1LEL5_9FLAO | TIGR00435 | 0.310315 | 0.05 | 1.000000 |
[7]:

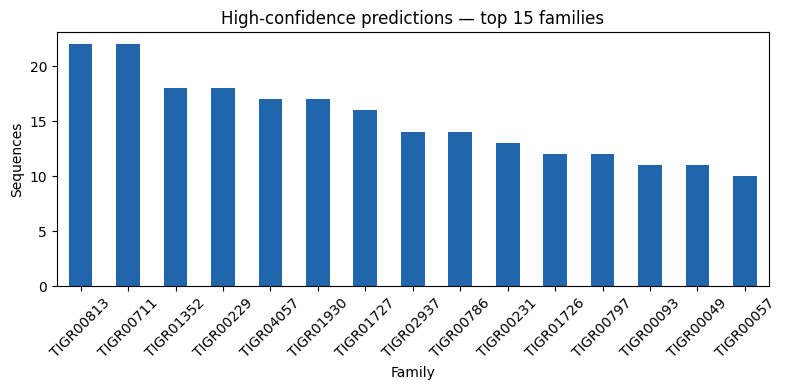

top_families = high_conf["Prediction"].value_counts().head(15)
fig, ax = plt.subplots(figsize=(8, 4))
top_families.plot(kind="bar", ax=ax, color="#2166ac")
ax.set_title("High-confidence predictions \u2014 top 15 families")
ax.set_xlabel("Family")
ax.set_ylabel("Sequences")
ax.tick_params(axis="x", rotation=45)
plt.tight_layout()
plt.show()

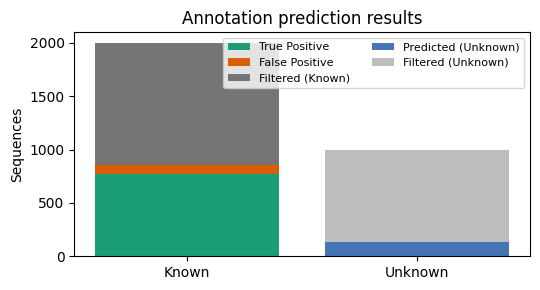

Post-hoc evaluation
When ground-truth annotations are available (as they are for this demo dataset), we can assess prediction quality by comparing Snekmer’s output against the known family labels.
The demo test set contains 3,000 proteins split across three groups:
In-family: proteins from TIGRFAM families present in the training set
Other annotated: proteins from families not in the training set
Unannotated: proteins with no known family assignment
Because this demo uses a small training set (200 families, 5,000 sequences), accuracy here represents a lower bound. Performance improves substantially with larger training sets.
Note: All sequences receive a prediction regardless of confidence. Adjust
conf_cutoff,score_cutoff, anddelta_cutoffbelow to explore the precision/recall tradeoff.
[8]:
conf_cutoff, score_cutoff, delta_cutoff = CONF_THRESHOLD, None, None
edf = pd.read_csv(results_path)
edf.columns = edf.columns.str.strip().str.capitalize()
edf["Accession"] = edf["Sequence"].str.split("|").str[1].fillna(edf["Sequence"])
ann_gt = pd.read_csv(
DEMO_ROOT / "annotations" / "TIGRFAMs_annotation.ann",
sep="\t",
).rename(columns={"id": "Accession", "family": "Truefamily"})
edf = edf.merge(ann_gt, on="Accession", how="left")
kept = pd.Series(True, index=edf.index)
for col, cut in [("Confidence", conf_cutoff), ("Score", score_cutoff), ("Delta", delta_cutoff)]:
if cut is not None:
kept &= edf[col] >= cut
known = edf["Truefamily"].notna()
corr = known & (edf["Prediction"] == edf["Truefamily"])
counts = {
"True Positive": int((kept & corr).sum()),
"False Positive": int((kept & known & ~corr).sum()),
"Filtered (Known)": int((~kept & known).sum()),
"Predicted (Unknown)": int((~known & kept).sum()),
"Filtered (Unknown)": int((~known & ~kept).sum()),
}
TP, FP, FK = counts["True Positive"], counts["False Positive"], counts["Filtered (Known)"]
prec = TP / (TP + FP) if TP + FP else float("nan")
rec = TP / (TP + FK) if TP + FK else float("nan")
print(f"Kept: {kept.sum()}/{len(edf)} | TP:{TP} FP:{FP} FK:{FK} | Precision:{prec:.3f} Recall:{rec:.3f}")
colors = {
"True Positive": "#1b9e77",
"False Positive": "#d95f02",
"Filtered (Known)": "#757575",
"Predicted (Unknown)": "#4575b4",
"Filtered (Unknown)": "#bdbdbd",
}
fig, ax = plt.subplots(figsize=(5.5, 3))
for group, keys in [("Known", ["True Positive", "False Positive", "Filtered (Known)"]),
("Unknown", ["Predicted (Unknown)", "Filtered (Unknown)"])]:
bot = 0
for k in keys:
ax.bar(group, counts[k], bottom=bot, color=colors[k], label=k)
bot += counts[k]
ax.set(title="Annotation prediction results", ylabel="Sequences")
h, l = ax.get_legend_handles_labels()
ax.legend(dict(zip(l, h)).values(), dict(zip(l, h)).keys(), ncol=2, fontsize=8)
plt.tight_layout()
plt.show()
Kept: 995/3000 | TP:773 FP:87 FK:1140 | Precision:0.899 Recall:0.404
Interactive mode (wizard)
If you omit --train, --query, or the annotation flag, easy enters an interactive wizard that prompts for each missing input:
$ snekmer easy
=== Snekmer easy ===
Step 1 Training sequences (file or directory path): /path/to/train/
Step 2 Query sequences (file or directory path): /path/to/query.fasta
Found 10 training file(s), 1 query file(s).
Step 3 How are your training sequences annotated?
[1] Family labels are embedded in FASTA headers (between | | characters)
Example: >db|TIGR04183|seqid Description text
^^^^^^^^
this field becomes the family label
(equivalent to passing --create-ann)
[2] I have a separate annotation file (.ann)
Format: tab-separated with columns: id family
(equivalent to passing --ann <path>)
Choice [1]: 2
Path to annotation file (.ann): /path/to/annotations.ann
Step 4 Output directory [snekmer_easy_output]: my_results
You can mix flags and wizard — for example, provide --train and --ann but omit --query, and only the query prompt will appear.
Key parameters
Run snekmer easy --help to see all options. The most commonly adjusted:
Flag |
Default |
Description |
|---|---|---|
|
|
K-mer length |
|
|
Amino acid reduction alphabet (0–5 or name, see |
|
|
Annotation selection method: |
|
|
Score threshold column from family stats: |
|
|
Output filename for the results CSV |
|
all CPUs |
Number of CPU cores to use |
|
— |
Show the pipeline steps without running them |
For advanced use (adding to an existing model, fragmentation, etc.), use snekmer learn and snekmer apply directly with a config.yaml.
[9]:
!snekmer easy --help
usage: snekmer easy-learn-apply [options]
Guided front-end that runs learn then apply end-to-end.
Prompts for training sequences, query sequences, and annotation style,
then builds a self-contained workspace and runs both pipeline steps.
All prompts can be skipped by supplying the corresponding flags.
options:
-h, --help show this help message and exit
Input / output:
--train PATH Path to training sequences (FASTA file or directory of
FASTA files). If omitted, the wizard will prompt for
it. (default: None)
--query PATH Path to query sequences to annotate (FASTA file or
directory). If omitted, the wizard will prompt for it.
(default: None)
--output DIR Output directory for the workspace. If omitted, the
wizard will prompt. (default: None)
Annotation (choose one):
--ann PATH Path to an existing annotation file (.ann). Format:
tab-separated with columns 'id' and 'family'.
(default: None)
--create-ann Generate annotations from training FASTA headers.
Requires headers in the format: >db|FAMILY_LABEL|seqid
description (the field between the first pair of | |
becomes the family label). (default: False)
K-mer parameters:
--k N K-mer length. (default: 8)
--alphabet Reduced alphabet encoding (0–5, alphabet name, or
'None'). 2 = solvacc (3-letter). See alphabets list
below. (default: 2)
Learn / apply options:
--selection Annotation selection method {top_hit,
greatest_distance, combined_distance}. (default:
top_hit)
--threshold Family-specific score threshold for prediction
filtering. Options: 'Median', 'Mean', '90th
Percentile', 'None'. (default: Median)
--apply-output FILENAME
Output filename for apply results. (default:
snekmer_results.csv)
Snakemake options:
--cores N, -c N CPU cores to use. (default: 10)
--dry-run, -n Show what would be done without executing. (default:
False)
--verbose Show additional Snakemake debug output. (default:
False)
--quiet [{progress,rules,all} ...], -q [{progress,rules,all} ...]
Reduce Snakemake output. (default: None)
Miscellaneous:
--copy-files Copy input files into the workspace instead of
symlinking them (useful when the workspace will be
moved or shared). (default: False)
Alphabets (k-mer recoding):
0: hydro (size 2) — 2-value hydrophobicity alphabet
1: standard (size 7) — “Standard” reduction alphabet
2: solvacc (size 3) — Solvent accessibility alphabet
3: hydrocharge (size 3) — 2-value hydrophobicity with charged residues as a third category
4: hydrostruct (size 3) — 2-value hydrophobicity with structural-breakers as a third category
5: miqs (size 10) — MIQS alphabet3
None: None (size 20) — No reduced alphabet
You may pass either an integer (0–5) or the alphabet name (e.g. 'hydro'), or 'None'.
